Tea Tree Mushroom Shelving Cultivation Container

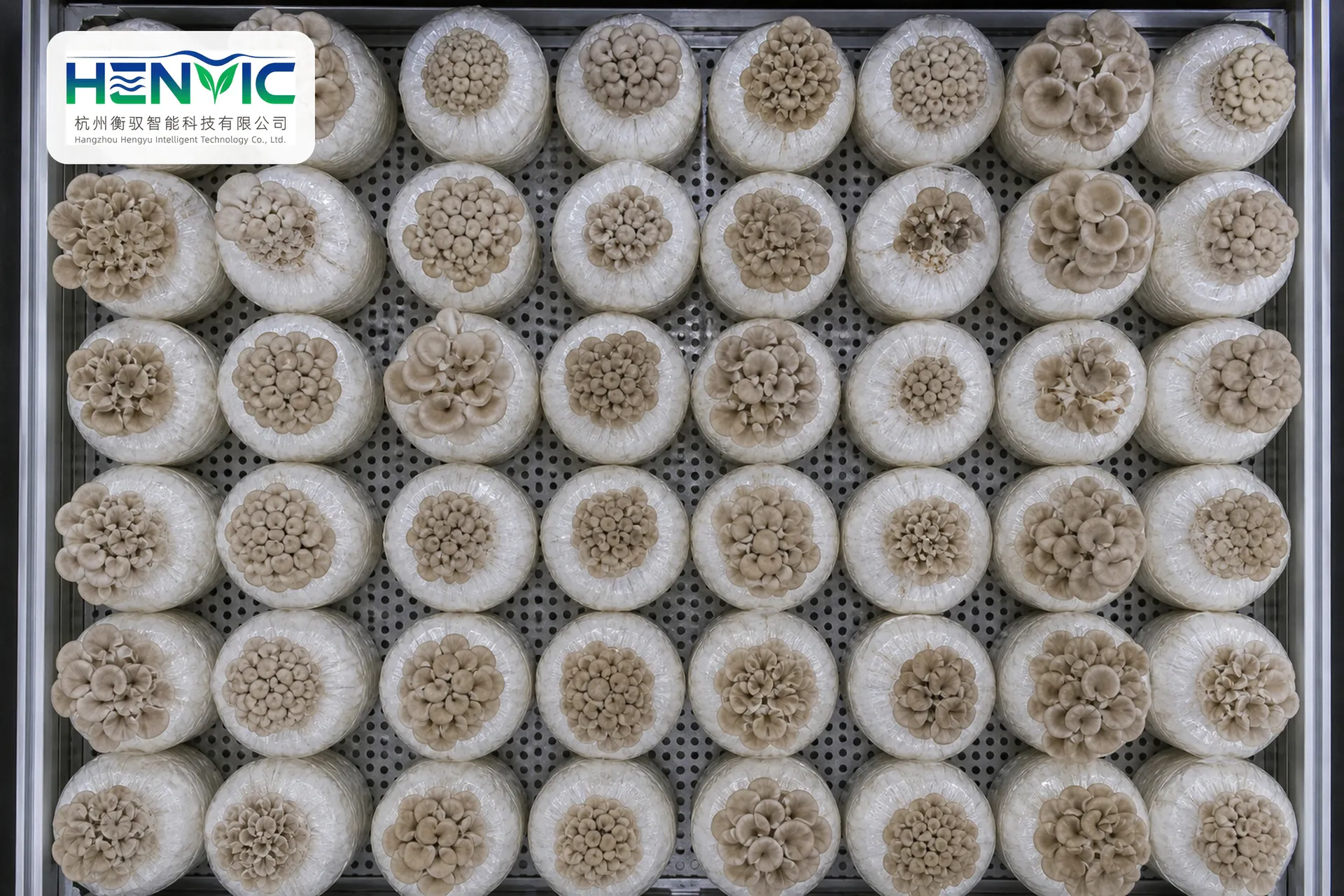

Product illustration: images/mushroom/HVC-M09.jpg (Top-view shelf mushroom bag array)
I. Product Overview
Tea tree mushrooms thrive in medium-to-high temperature environments; the mushroom bags are arranged vertically on shelving units, with fruiting occurring at the top. The HVC-M09 system employs a regular grid-based shelving arrangement combined with a high-density planting scheme, supplemented by top micro-spraying and directional ventilation to achieve a high-density, uniform fruiting outcome.
II. Core Competencies
● High-density arrangement: The shelving systems feature custom-designed grids tailored to the diameter of the bacterial culture bags, enabling a high loading capacity per unit area.
● Top micro-spraying: Atomized water is evenly applied from top to bottom over the edge of the mushroom bag, ensuring uniform fruiting.
● High-temperature adaptation: The unit is optimized for operating conditions between 20–28°C, ensuring stable performance during summer operation.
● Neat harvesting: Grid-based positioning ensures uniform orientation of the mushroom stems, enhancing both harvesting and grading efficiency.
III. Typical Technical Specifications
project | parameter |
outline dimension | 12000 × 2438 × 2896 mm (40 feet) |
Bacterial packaging load | 3500–5000 packs (depending on specification) |
Temperature control range | 20–28 ℃（±1 ℃） |
relative humidity | 85%–92% RH |
beam | 0–500 lux |
Number of shelving units | 4–5 layer |
installed power | 10–14 kW |
source | 380 V / 50 Hz Three-phase |
IV. System Configuration
Grid-based shelving system, medium-to high-temperature refrigeration units, top-mounted micro-sprinkler humidification system, directional air supply, adjustable LED lighting, drainage and water-proof flooring, intelligent control cabinet.
V. Applicable Varieties
Medium-to-high-temperature fungi such as Tea Tree mushrooms, Abalone mushrooms, and High-Temperature Auricularia mushrooms.
VI.适用场景
Dry tea tree mushroom processing support base; mushroom production projects in southern China; large-scale cooperative development projects.
VII. Delivery and Installation
Delivered as a complete shipment; commissioning is completed within 3–4 working days after on-site hoisting and power connection; guidance on mushroom bag discharge and fruiting management will be provided.
VIII. After-Sales Service
12-month overall warranty; shelf capacity expansion and consumable supply; remote operational and maintenance support.
