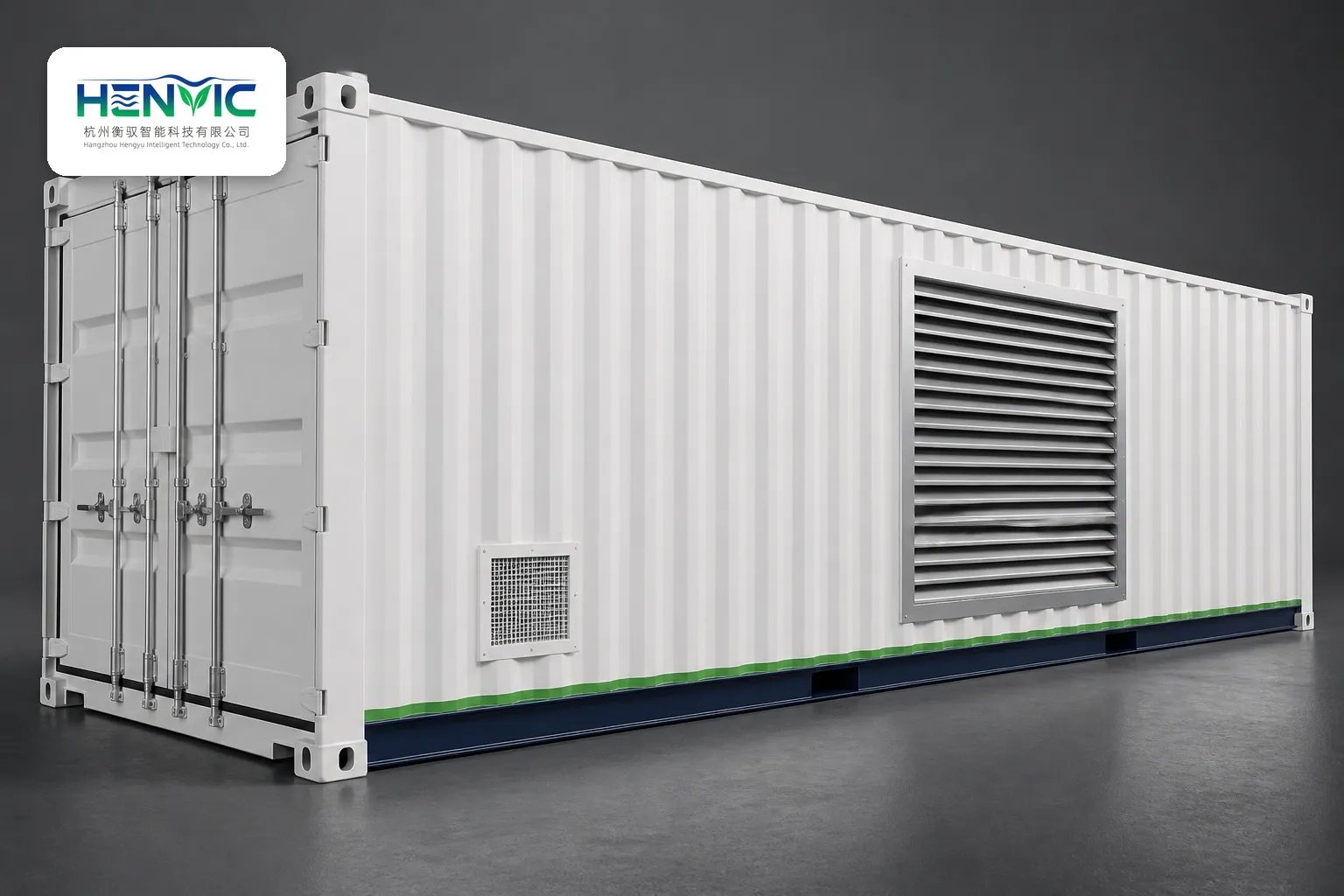

Shiitake Mushroom Cultivation Container Model：HVC-M4A
1. Product Overview
Shiitake fruiting depends on cold-shock and light stimulation, and how evenly the substrate logs are lit directly determines cap colour and grading. This model combines programmable temperature-differential curves, directional inter-tier lighting and pull-out racks so that every log receives identical fruiting conditions.
2. Key Advantages
• Programmable cold-shock curves that promote even primordia induction
• Directional inter-tier lighting for uniform log exposure and consistent cap colour
• High-density pull-out racks giving a high load per unit area and easy batch handling
• Fresh-air and exhaust interlocks that clear the high CO2 peaks of peak fruiting
3. Technical Specifications
项目 / Item | 参数 / Specification |
型号 / Model | HVC-M4A |
外形尺寸 / Dimensions | 6058 × 2438 × 2896 mm（20 尺标准箱） / 6058 x 2438 x 2896 mm (20 ft ISO container) |
有效栽培面积 / Effective cultivation area | 20–30 m² / 20-30 m2 |
层架配置 / Rack configuration | 3 层不锈钢出菇架，层距可调 / 3-tier stainless steel growing racks with adjustable shelf pitch |
温度控制范围 / Temperature range | 12-22 ℃ (±0.5 ℃) / 12-22 degC (+/-0.5 degC) |
相对湿度 / Relative humidity | 85-92% RH |
CO₂ 浓度 / CO₂ concentration | 800-1500 ppm |
光照 / Lighting | 0-800 lux（可调 / adjustable） |
栽培周期 / Cultivation cycle | 30–45 天（出菇期） / 30-45 days for the fruiting stage |
装机功率 / Installed power | 6–9 kW / 6-9 kW |
电源 / Power supply | 380 V / 50 Hz 三相（可按目的国电压定制） / 380 V / 50 Hz, 3-phase (customisable to destination-country voltage) |
箱体传热系数 / Enclosure U-value | ≤0.40 W/(m²·K) / <= 0.40 W/(m2.K) |
控制系统 / Control system | PLC + 7 寸触摸屏，本地控制，预留远程接口 / PLC with 7-inch touch panel; local control with remote-ready interface |
主栽品种 / Primary species | 香菇（Lentinula edodes） / Shiitake Mushroom (Lentinula edodes) |
4. System Configuration
Standard configuration: Mesh-type pull-out log racks, inverter refrigeration unit, fogging humidifier with floor wet-film, dimmable LED bars, interlocked fresh-air and exhaust fans, ozone and UV disinfection interfaces, and an intelligent control cabinet.
Enclosure and integration: 6058 x 2438 x 2896 mm (20 ft ISO container); racks: 3-tier stainless steel growing racks with adjustable shelf pitch; control: PLC with 7-inch touch panel; local control with remote-ready interface.
5. Suitable Species
Primary species: Shiitake Mushroom (Lentinula edodes). Cultivation method: synthetic substrate logs (bag culture). We recommend a companion colouring (browning) area; logs that finish colouring before entering the container yield more uniform batches.
6. Application Scenarios
Year-round shiitake production bases, grow-rooms attached to substrate-log factories, and rural revitalisation industry projects. This is the Compact configuration; Small footprint for near-market deployment; ideal for pilot production and space-constrained sites.
7. Delivery & Installation
• Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 48-hour continuous operation test, with a test record supplied with the shipment.
• Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.
• On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 3 working days.
• Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.
8. After-Sales Service
• Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.
• Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.
• Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).
• Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.
• Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
